The Ant Goes Marching

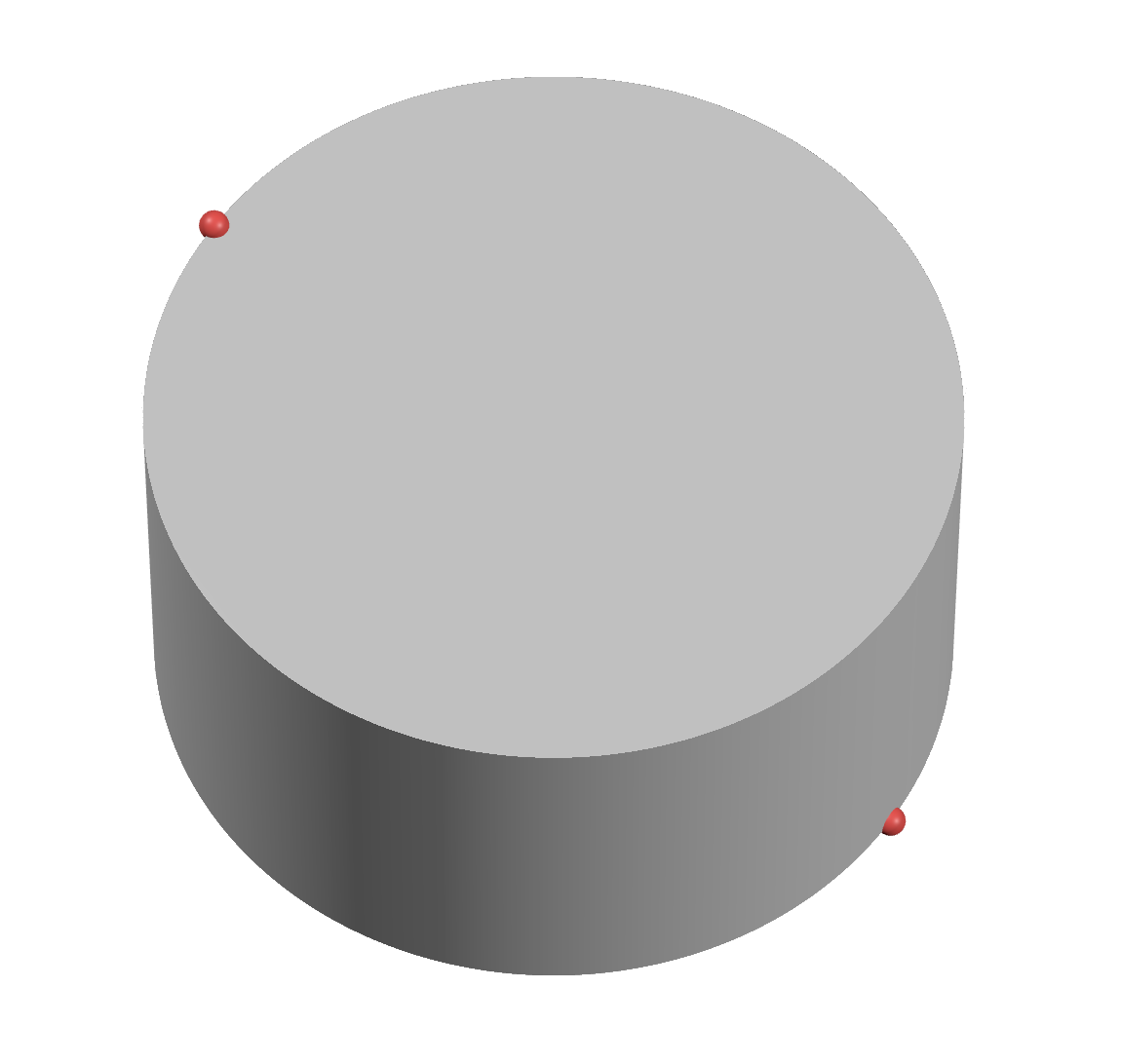

June the ant is on the edge of one of a cylinder’s two circular faces. Her dinner is on the edge of the opposite face, all the way around on the other side: diametrically opposite her, one face down. The radius of the cylinder is 2 meters and its height is 2 meters. What is the shortest path along the surface to her dinner?

The Fiddler, Zach Wissner-Gross, May 22, 2026(original post)

Solution

Put June at $(2, 0, 2)$ in cylindrical coordinates and dinner at $(2, \pi, 0)$. Two families of unrollable paths compete. Across the top, then down: walk straight across the top face along the diameter (length $4$), arriving above the dinner, then straight down the side (length $2$), total $6$. Around the side: unrolling the lateral surface, going halfway around is $\sqrt{(2\pi)^2+2^2}\approx6.594$, which loses. Mixed paths interpolate between them and beat neither. The shortest path is $$\boxed{6 \text{ meters}}.$$

The computation

Parameterise the crossing point on the top face: cross to the point at angle $\varphi$, then descend the unrolled side to the dinner. Minimising the total chord-plus-descent over $\varphi$ confirms the optimum is the full diameter ($\varphi=\pi$) followed by a straight drop.

import numpy as np
from scipy.optimize import minimize_scalar
def mixed(phi):
    chord = 2*np.sqrt(2 - 2*np.cos(phi))         # across the top
    helix = np.sqrt((2*(np.pi - phi))**2 + 2**2)  # unrolled side
    return chord + helix
r = minimize_scalar(mixed, bounds=(0, np.pi), method="bounded")
print(r.fun, r.x)  # 6.0 at phi = pi: diameter, then down

Extra Credit

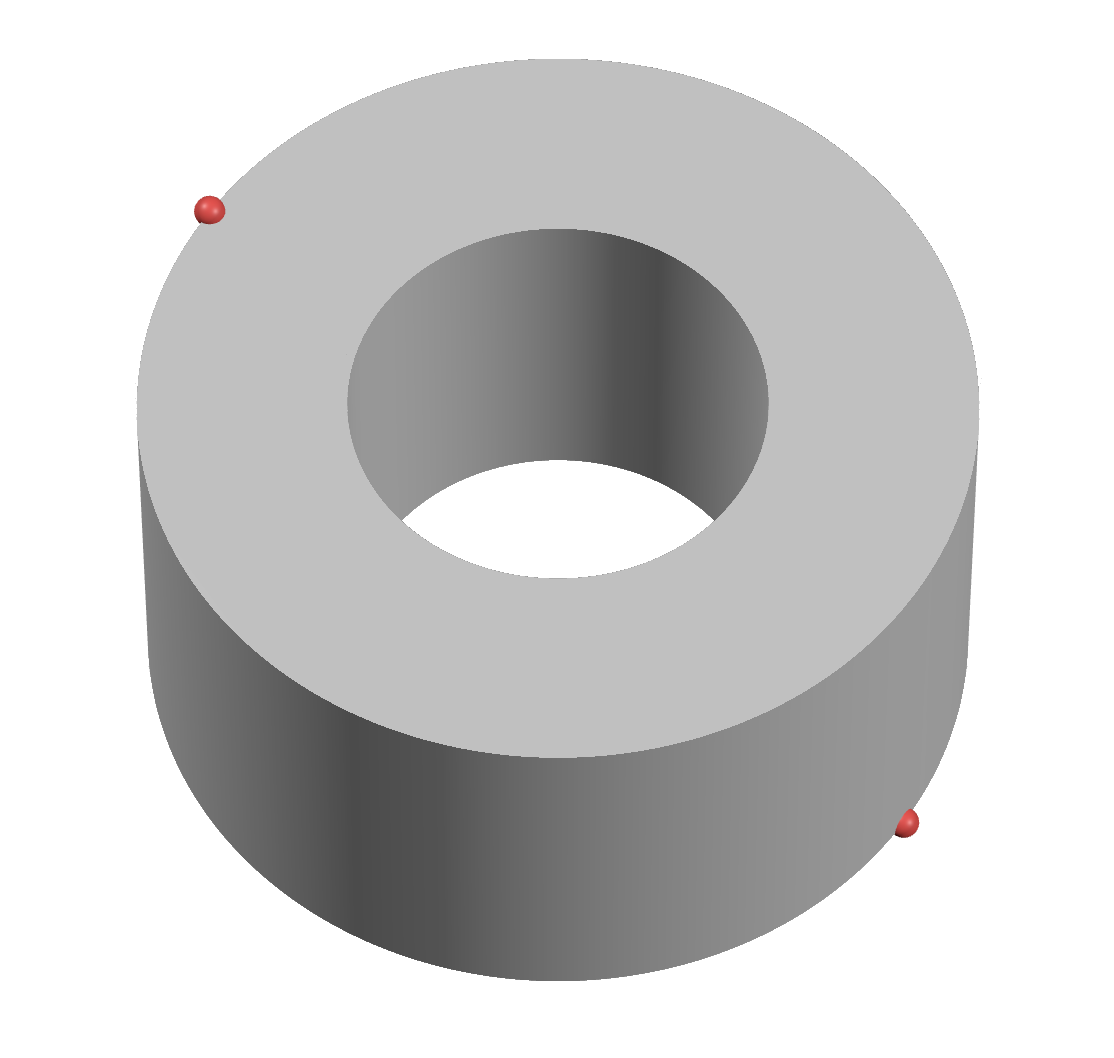

Now June is on a hollowed-out cylinder: a cylindrical shell with outer radius 2 meters, inner radius 1 meter, and height 2 meters. She stands on the outer edge of one flat face; dinner is on the opposite face, all the way around on the other side. What is the shortest path along the shell’s surface?

Solution

The new surface opens a shortcut through the hole: cross the top annulus to the inner circle, descend the inner wall, cross the bottom annulus back out. Each leg unrolls flat; the chord between radius-$2$ and radius-$1$ points separated by angle $\gamma$ is $\sqrt{5-4\cos\gamma}$, and the inner wall descent of $2$ while turning through $\beta-\alpha$ unrolls to $\sqrt{4+(\beta-\alpha)^2}$. By symmetry $\beta=\pi-\alpha$, leaving $$f(\alpha) = 2\sqrt{5 - 4\cos\alpha} + \sqrt{4 + (\pi - 2\alpha)^2},$$ minimised at $\alpha^* = 0.45775$ with $$f(\alpha^*) = \boxed{5.36896 \text{ meters}},$$ shorter than the outer-wall helix ($6.59$) or skirting the hole on the top ($6.51$). (The source’s value is behind its paywall; this is my own.)

The computation

Minimise the three-leg through-the-hole length $f(\alpha)$ over the entry angle, and cross-check the two rival outside routes (the outer-wall helix and the top-skirt-then-down path).

f = lambda a: 2*np.sqrt(5 - 4*np.cos(a)) + np.sqrt(4 + (np.pi - 2*a)**2)
r = minimize_scalar(f, bounds=(0, np.pi/2), method="bounded", options={"xatol": 1e-12})
print(r.x, r.fun)            # 0.45775..., 5.368959...
print(np.sqrt(4 + (2*np.pi)**2))                 # outer wall: 6.5938
lp = np.sqrt(4 - 1); arc = (np.pi - 2*np.arccos(1/2)) * 1
print(2*lp + arc + 2)                            # top-skirt-then-down: 6.5113
