Can You Trace the Locus?

I have a loop of string whose total length is $10$. I place it around a unit disk (radius $1$) and pull a point on the string away from the disk until the string is taut. I then drag this point around the disk in all directions, always keeping the string taut, so the point traces out a loop. What is the area inside this loop?

The Fiddler, Zach Wissner-Gross, March 20, 2026(original post)

Solution

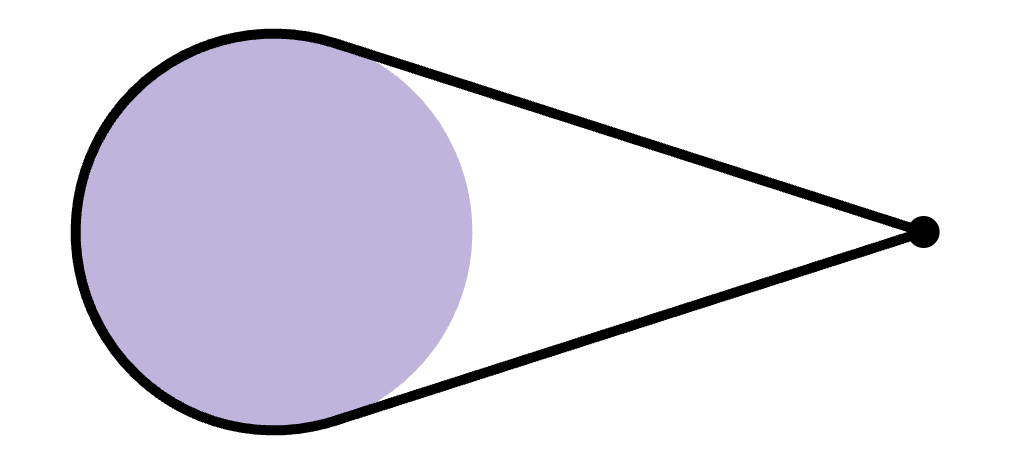

Pulled taut to a point $P$, the string hugs the far side of the disk and runs straight along the two tangent lines to $P$. That shape is exactly the boundary of the convex hull of the disk together with $P$, so the string’s length is the perimeter of that hull: the far arc plus the two tangent segments. If $P$ lies at distance $d$ from the centre, each tangent has length $x=\sqrt{d^2-1}$, and the near arc of measure $2\arctan x$ is replaced by the tangents, leaving $$L = \bigl(2\pi - 2\arctan x\bigr) + 2x.$$ This depends only on $d$, so for a fixed string length the distance $d$ is the same in every direction: the traced loop is a circle centred at the disk’s centre. Setting $L = 10$, $$2x - 2\arctan x = 10 - 2\pi,\qquad x = 3.1189\ldots,$$ and the enclosed area is $$\pi d^2 = \pi\bigl(1 + x^2\bigr) = \boxed{33.70\ldots}.$$

The computation

Solve the taut-string condition: find the tangent length $x$ at which the convex-hull perimeter $2\pi-2\arctan x+2x$ equals the string length $10$, then the traced circle has radius $\sqrt{1+x^2}$ and area $\pi(1+x^2)$.

from math import atan, pi
from scipy.optimize import brentq
x = brentq(lambda x: 2*x - 2*atan(x) - (10 - 2*pi), 0.1, 100)
print(round(pi * (1 + x*x), 4))      # 33.7023

Extra Credit

Now the loop of string has length $14$, and I place it around two adjacent unit disks before pulling a point taut and dragging it around. What is the area inside the traced loop?

Solution

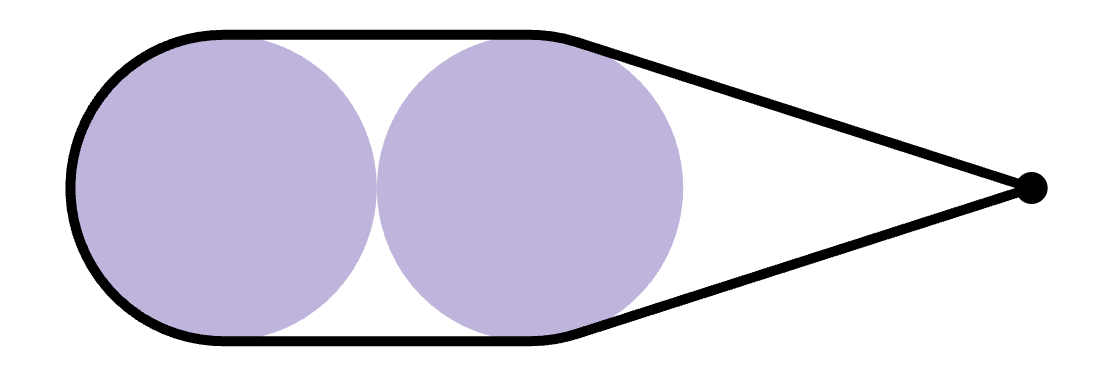

The two touching disks have, as their convex hull, a stadium: two unit semicircles joined by straight sides of length $2$. The taut string still traces the boundary of the convex hull of the obstacle and the point $P$, so the loop is the set of points $P$ for which that hull has perimeter $14$. The stadium is not a circle, so the loop is not one either, and the area has no tidy closed form. Tracing it numerically gives $$\boxed{52.36\ldots}.$$

The computation

Build the two-disk obstacle as points. In each direction, root-find the distance at which the convex hull of the obstacle plus the pulled point has perimeter $14$; that locus of points is the traced loop, and the shoelace formula gives its area.

import numpy as np
from scipy.spatial import ConvexHull
from scipy.optimize import brentq
def disk(cx, n=2000):
    t = np.linspace(0, 2*np.pi, n, endpoint=False)
    return np.c_[cx + np.cos(t), np.sin(t)]
K = np.vstack([disk(-1), disk(1)])          # unit disks, centres (-1,0),(1,0)
def perim(P):
    w = np.vstack([K, P]); v = w[ConvexHull(w).vertices]
    return np.linalg.norm(np.diff(np.vstack([v, v[0]]), axis=0), axis=1).sum()
pts = []
for a in np.linspace(0, 2*np.pi, 720, endpoint=False):
    r = brentq(lambda r: perim([r*np.cos(a), r*np.sin(a)]) - 14, 2, 60)
    pts.append([r*np.cos(a), r*np.sin(a)])
p = np.array(pts)
print(round(0.5*abs((p[:, 0]*np.roll(p[:, 1], -1)
                     - np.roll(p[:, 0], -1)*p[:, 1]).sum()), 2))   # 52.36
