Number Hooks

A nested-hook placement puzzle.

Problem

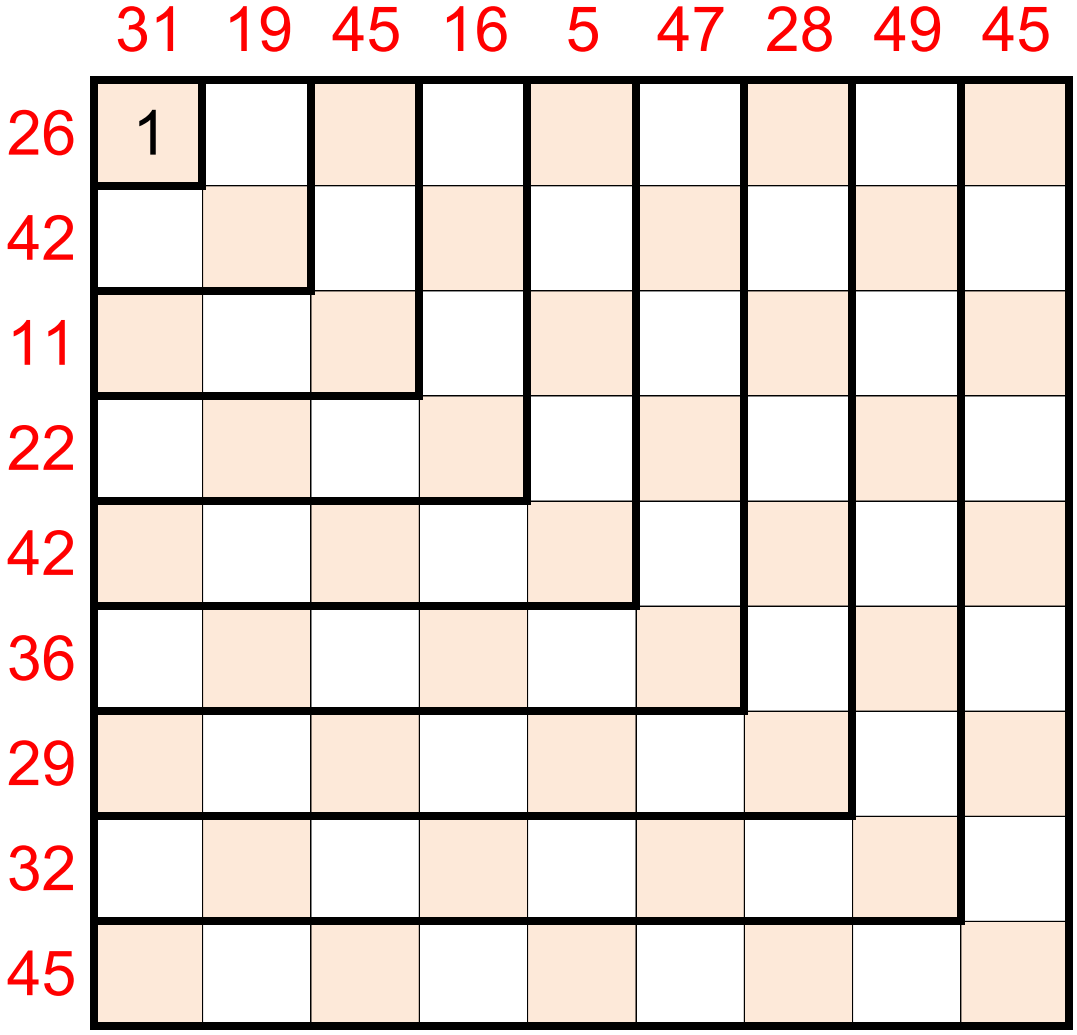

The grid below has a nested family of L-shaped hooks: the outermost hook spans the bottom row and the right-most column, the next hook is inset by one cell, and so on inward. In each hook of size $k$ (for $k = 1, \dots, 9$), place exactly $k$ copies of the digit $k$, with the remaining cells of the hook left empty. The row and column sums printed along the borders must match the totals of the digits placed.

Solution

This is a constraint-satisfaction problem with three families of constraints (row sums, column sums, hook membership). Z3 solves it directly:

$$\begin{array}{|ccccccccc|} \hline 1 & . & 3 & . & . & 6 & 7 & . & 9 \\ 2 & 2 & 3 & . & 5 & 6 & 7 & 8 & 9 \\ 3 & . & . & . & . & . & . & 8 & . \\ 4 & 4 & 4 & 4 & . & 6 & . & . & . \\ 5 & 5 & 5 & 5 & . & 6 & 7 & . & 9 \\ . & . & 6 & . & . & 6 & 7 & 8 & 9 \\ 7 & . & 7 & 7 & . & . & . & 8 & . \\ . & 8 & 8 & . & . & 8 & . & 8 & . \\ 9 & . & 9 & . & . & 9 & . & 9 & 9 \\ \hline \end{array}$$

Python code

from z3 import *

def generate_hooks(size):
    hooks = []
    for n in range(1, size + 1):
        hook = []
        for i in range(n):
            for j in range(n):
                if i == n - 1 or j == n - 1:
                    hook.append((i, j))
        hooks.append(hook)
    return hooks

row_sums = [26, 42, 11, 22, 42, 36, 29, 32, 45]
col_sums = [31, 19, 45, 16,  5, 47, 28, 49, 45]

def solve_number_hook_puzzle():
    solver = Solver()
    grid = [[Int(f"cell_{i}_{j}") for j in range(9)] for i in range(9)]

    for i in range(9):
        solver.add(Sum(grid[i]) == row_sums[i])
        solver.add(Sum([grid[j][i] for j in range(9)]) == col_sums[i])

    hooks = generate_hooks(9)
    for i, hook in enumerate(hooks):
        value = i + 1
        cells_in_hook = [grid[r][c] for r, c in hook]
        solver.add(Sum([If(c == value, 1, 0) for c in cells_in_hook]) == value)
        for r, c in hook:
            solver.add(Or(grid[r][c] == value, grid[r][c] == 0))

    for row in grid:
        for cell in row:
            solver.add(And(cell >= 0, cell <= 9))

    if solver.check() == sat:
        m = solver.model()
        return [[m.evaluate(grid[i][j]).as_long()
                 for j in range(9)] for i in range(9)]
    return None

solution = solve_number_hook_puzzle()
if solution:
    for row in solution:
        print(" ".join(str(x) if x != 0 else '.' for x in row))
else:
    print("No solution found.")
